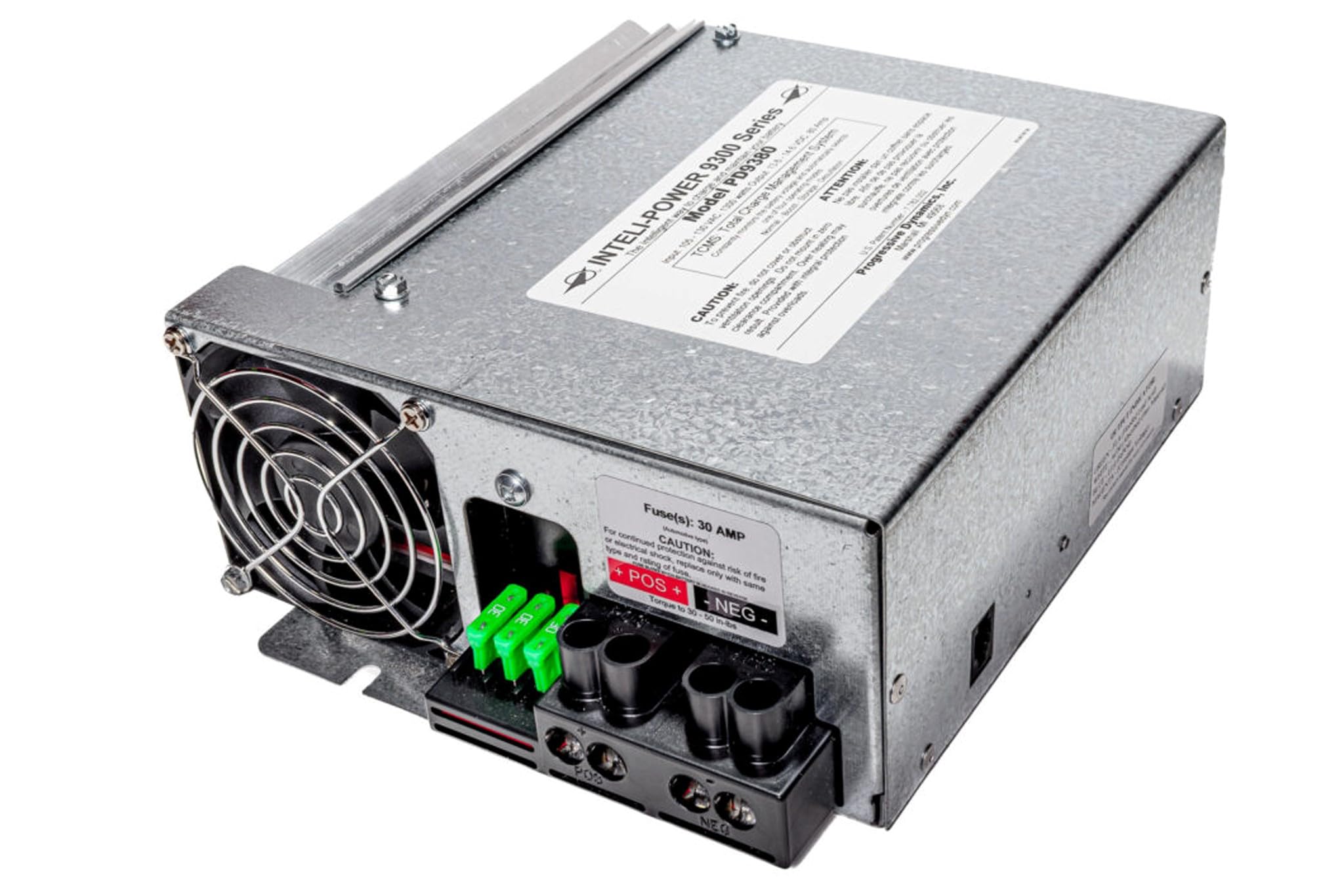

Inteli-Power PD9380V 9300 Series Converter - 80 Amp
Regular price
$533.32 USD
Couldn't load pickup availability
Ready to install and hit the road!
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Got questions?
Feel free to get in touch
Inteli-Power PD9380V 9300 Series Converter - 80 Amp
- Input: 105-130 VAC 60 Hz, 1300 Watts / Output: 13.6-14.7 VDC, 80 Amps
- Green Light (Flooded Lead Acid Mode): senses battery voltage and automatically selects the proper operating mode; if voltage drops below a preset level, switches to BOOST mode (~14.4 VDC) to rapidly recharge the battery
- Blue Light (Lithium 2-Stage Charge Mode): nominal output of 14.4 VDC; drops to IDLE mode (13.6 VDC) when output current falls below a preset level
- White Light (AGM Mode): nominal output of 14.0 VDC; switches to ABSORPTION mode (14.7 VDC) after a preset time, then to FLOAT mode (13.6 VDC) when current drops
- Magenta Light (Constant Voltage Mode): full rated load available for load, battery charging, or both; nominal output of 13.6 VDC (caution: do not store vehicle for extended periods in this mode)
- Caution: do not use to recharge flooded lead-acid batteries while in Lithium (Blue) or AGM (White) mode
- After 33 hours of no significant battery usage, automatically switches to STORAGE mode (13.2 VDC), briefly rising to 14.4 VDC for ~15 minutes every 21 hours to help prevent sulfation of the battery plates
